About this item

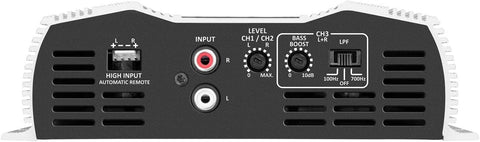

Taramps designed the DS 800X3 primarily for those who want to use the vehicle original player; this is possible because, in addition to the RCA input, the DS800x3 also has a wired input. With a maximum power of 800 Watts RMS with impedance of 1 and 2 OHMS, it is a 3-channel amplifier, two of them with 200 Watts RMS for playing from mid to treble and the other one is FULL RANGE, with 400 Watts RMS. It is to say, you have countless options in a single product.
TECHNICAL INFORMATION || OPERATION CLASS : Class D || NUMBER OF CHANNELS : 3 || MAXIMUM POWER : @ 12.6 VDC: 800W RMS CH1/CH2 (2 x 200W RMS) 1OHM | CH3 (1 x 400W RMS) 2OHMS || INPUT SENSITIVITY : 250mV || SIGNAL TO NOISE RATIO : >88dB || FREQUENCY RESPONSE : CH1/CH2 100Hz ~ 25KHz | 10Hz ~ 100Hz (LPF = 100Hz) | CH3 10Hz ~ 700Hz (LPF = 700Hz) | 10Hz ~ 25KHz (LPF = OFF) ||
CROSSOVER HIGH PASS (HPF) : (CH1 / CH2) 100Hz (-12dB/8ª) Fixed || CROSSOVER LOW PASS (LPF) : (CH3) 100Hz, 700Hz, OFF (-12dB/8ª) Selectable || INPUT IMPEDANCE : 10K Ohms (RCA) and 1K Ohms (Wire) || OUTPUT IMPEDANCE : 1 Ohm || PROTECTION SYSTEM : Output overload ||
MIN. SUPPLY VOLTAGE : 9 VDC || MAXIMUM POWER SUPPLY VOLTAGE : 16 VDC || CONSUMPTION AT REST : 1.0A || MAXIMUM MUSIC CONSUMPTION : @12.6VDC: 51A || MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL : 102A ||
DIMENSIONS (WXHXD) : 6.81" x 2.05" x 8.94" (173 x 52 x 227mm) || WEIGHT : 3.15lb (1,43kg) || EAN 7898556844949

TARAMPS DS800X3.1 DS 800x3 800 Watts RMS 3 Channels 1 Ohm Amplifier Multichannel Class D Full Range, Crossover High/Low Pass Bridgedable, Aluminium, RCA, Car Show Power System
